Cincinnati Shaper

[latzanimal]

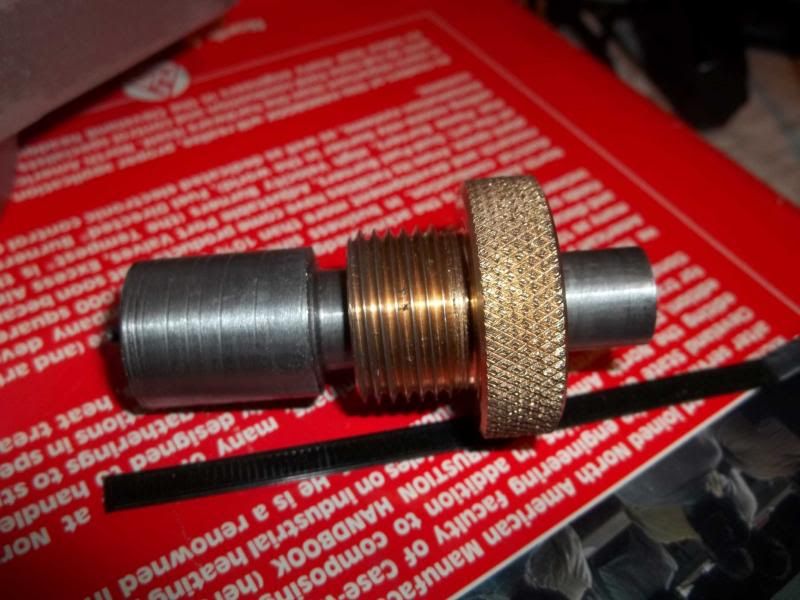

the knurl is off a little should of took a couple more thousands off of it.

Damn... Looks good to me.

[dallen]

I didn't do any on the parts in the last post, I did try to mold up the new pulley pattern that will replace the one on the transmission but had some setbacks with it. So I decided to pour the aluminum part in the last post again this time in Cast Iron just incase I like it when I get this one finsihed i can re do it in Iron.

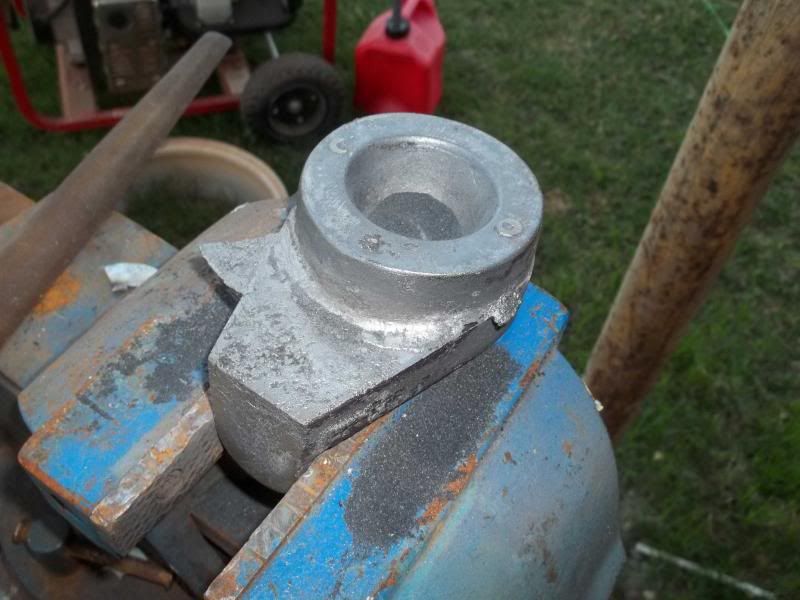

heres a photo of the Cast Iron one I did today, its a little rough but I did the majority of the clean up with the file you see in the photo laying on the back of the vise.



and as you can tell I got a lot of help from the live in help

[mite5255]

Poor shop monster, he's all tucked out from all the hard work

Mike

[dallen]

Mike with all that rest he got last night he could of helped out today while I was making a new oil tank for the burner, this one should hold about 15 gallons pretty easy

[dallen]

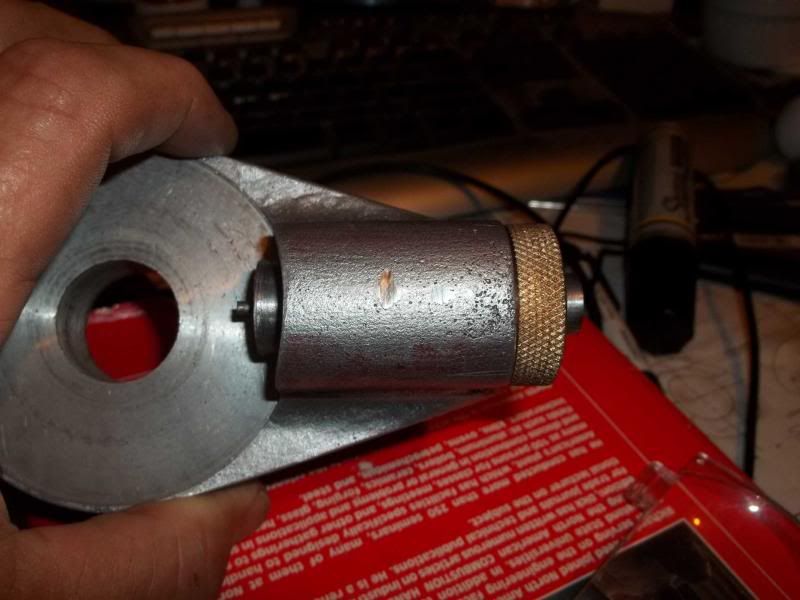

got a little done on the new ratchet pawl this evening here's a couple of photos

I'm making this one big and heavy so that it will have a more positive action hopefully, the first one I did I used a half inch diameter pin which left a lot to be desired in the way it worked.

[mite5255]

Mike with all that rest he got last night he could of helped out today while I was making a new oil tank for the burner, this one should hold about 15 gallons pretty easy

My fuel tank is a bit smaller then that, its an old compressor tank that holds about 6 gallons and I pressurize it to 2 bar to force the fuel out

Mike

[Jammer]

That pawl looks pretty hefty, should hold up pretty well. You should be sending all these picture to Cincinnati Milacron, but then they would steal your improvements.
I love the oil tanks, I hope I can work on my oil burner soon. I got so aggravated with it I put it up before I smashed it, That was a couple years ago.

[dallen]

That pawl looks pretty hefty, should hold up pretty well. You should be sending all these picture to Cincinnati Milacron, but then they would steal your improvements.
I love the oil tanks, I hope I can work on my oil burner soon. I got so aggravated with it I put it up before I smashed it, That was a couple years ago.

the aluminum part is actually a bit shorter then the other one, the part that will engage the gear is only and a 1/4" bigger in diameter so in all its not really not bigger. I think the brass part is what makes it look so much larger in the photo.

I received some photos last night of the original part on the shaper in Fairbanks AK its totally different then this so guess I'll stop on this an see if I can figure out what I need to do to get one close to the original one.

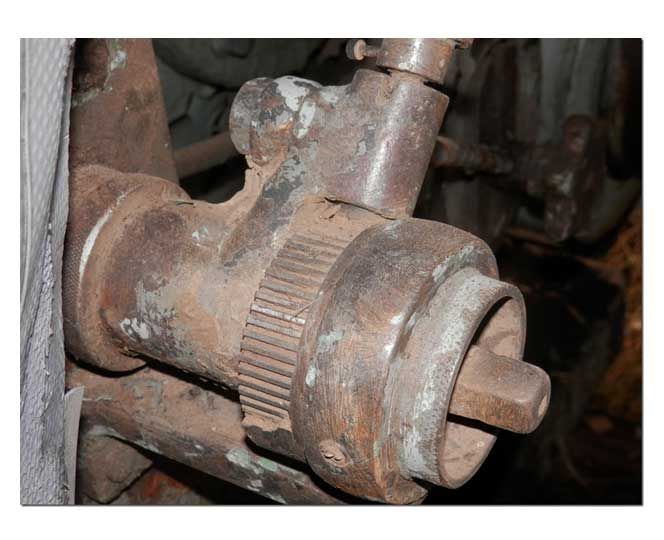

this is what the original looks like

A lot different then what I been trying to do.
DA

[Jammer]

Hey david, had you seen this?

http://vintagemachinery.org/pubs/detail.aspx?id=3656 It's a PDF manual for an older Shaper or you can buy a manual from Cinn/milicron for $98.

[dallen]

Jerry, I've seen it, that shaper will have a 5 digit serial number, Milicron say's they didn't make mine even thou I sent them a photo of the door which says Cincinnati Shaper on it.
